Pixelshooter™

Fully Automated Display Tester

At Alfamation we offer a robust and scalable solution designed to streamline the testing process for automotive displays.
Our automated test systems incorporate a range of testing capabilities, from electrical and optical assessments to haptic feedback tests, ensuring all aspects of display performance are thoroughly evaluated. With integrated video generators and fully configurable testing parameters, our systems offer unparalleled control and flexibility, making them ideal for high-volume production environments.

Comprehensive Testing Capabilities for Superior Display Performance

The Pixelshooter™ offers a comprehensive and scalable solution for the many challenges associated with automotive display testing. By leveraging our advanced testing capabilities, manufacturers can enhance display quality, optimize touch performance and ensure visual uniformity.

Pixelshooter™ Key Features and Benefits

•Off-the-Shelf Automated Platform: boost productivity with standard options or configurable builds to meet specific needs

•Wide Configurability: modular approach for different instruments configurations and different throughput solutions

•Interchangeable Fixtures: the design allows to test multiple products on the same platform

•High Test Coverage: one platform with multiple test capabilities

•Multiple Loading Options: the platforms can either be stand-alone, manually loaded by operators, or integrated in the assembly line.

•Powered by Alfamation Supernova™: based on the testing industry standard sequencer NI TestStand, it provides a fully programmable automatic test sequence

•Powered by Alfamation Flexmedia XM™: this smart test tools allow for an automated display drive, providing video pattern generation, firmware attributes reading\writing and more.

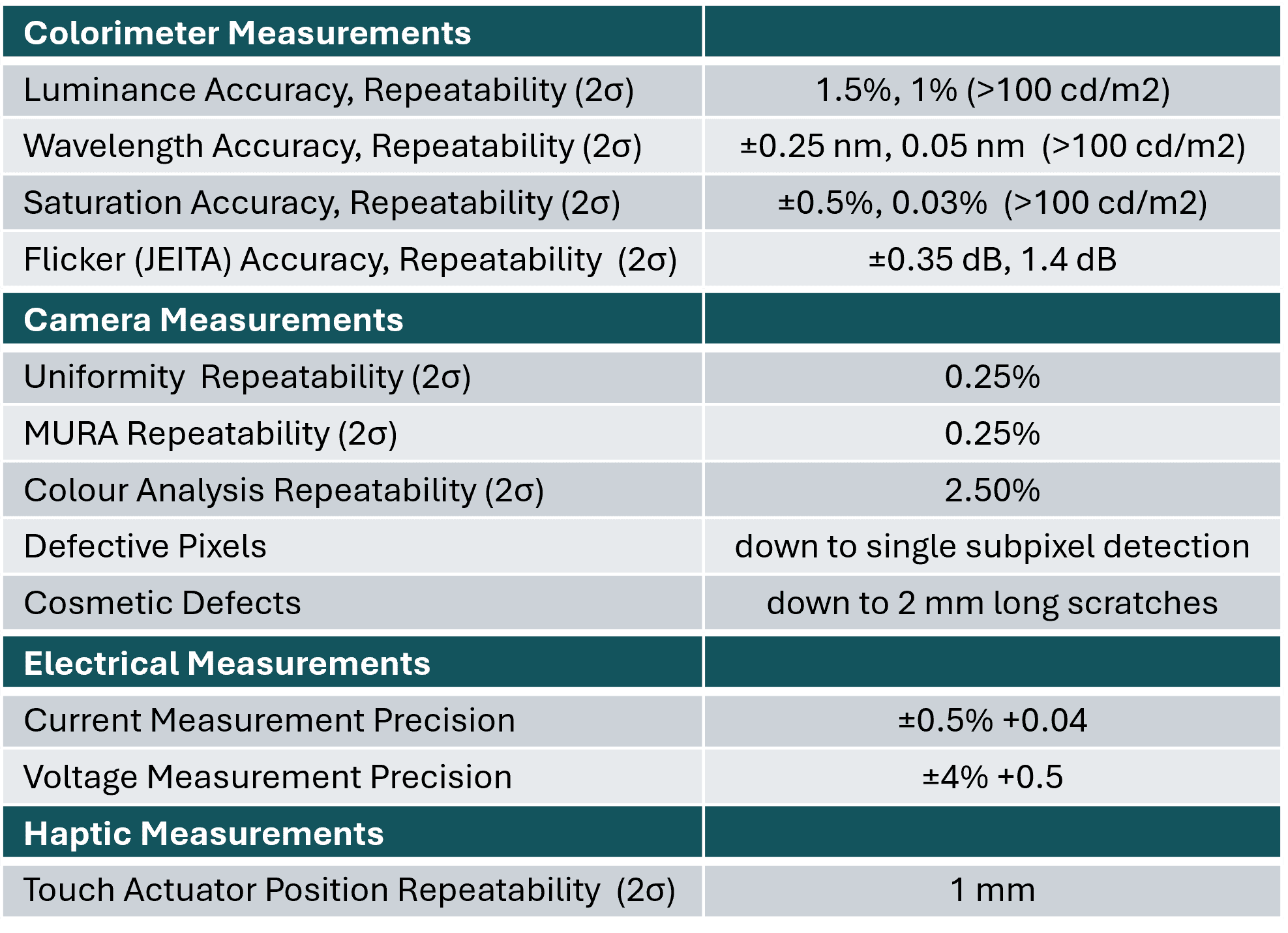

PixelshooterTM Platform Datasheet

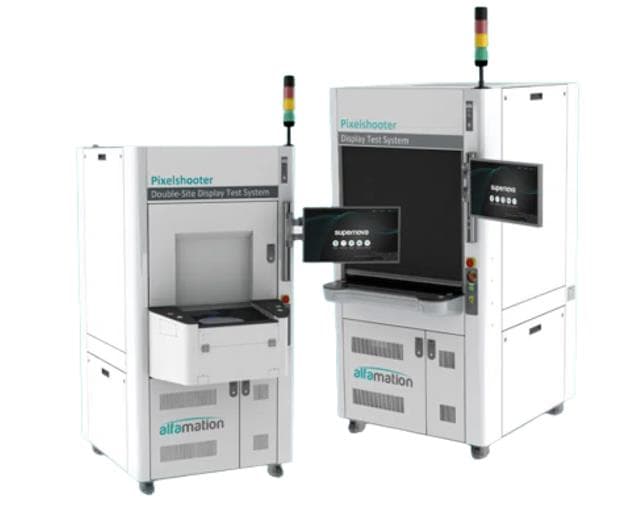

Different options for your needs

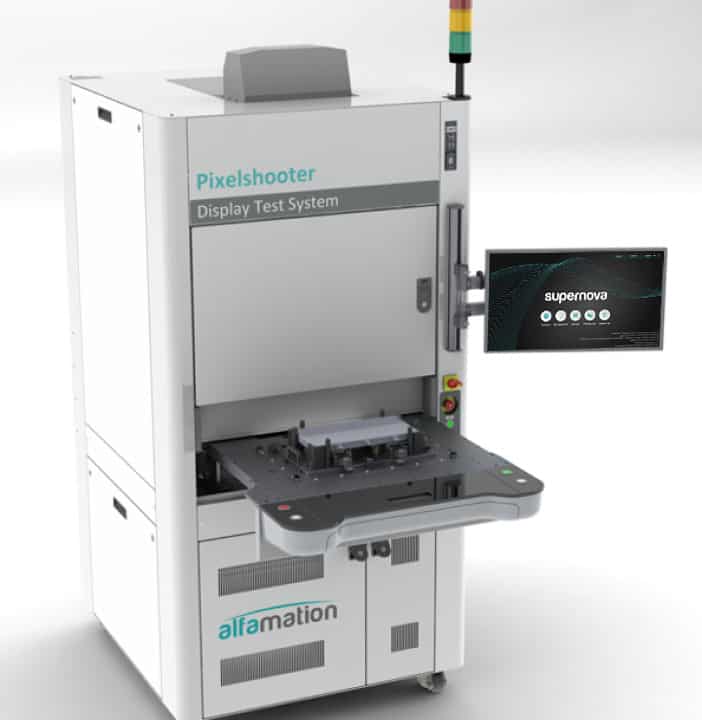

Single Test Site - Drawer

  • Manual Loading
  • Cost-effective
  • Flexible and Accurate

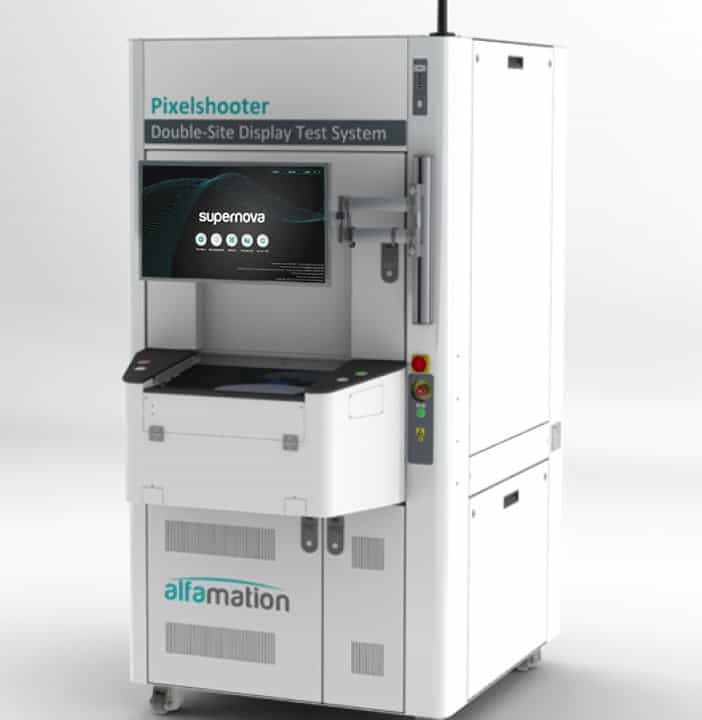

Double Test Site -Turntable

  • Smart Throughput Design
  • Best trade-off between productivity and costs

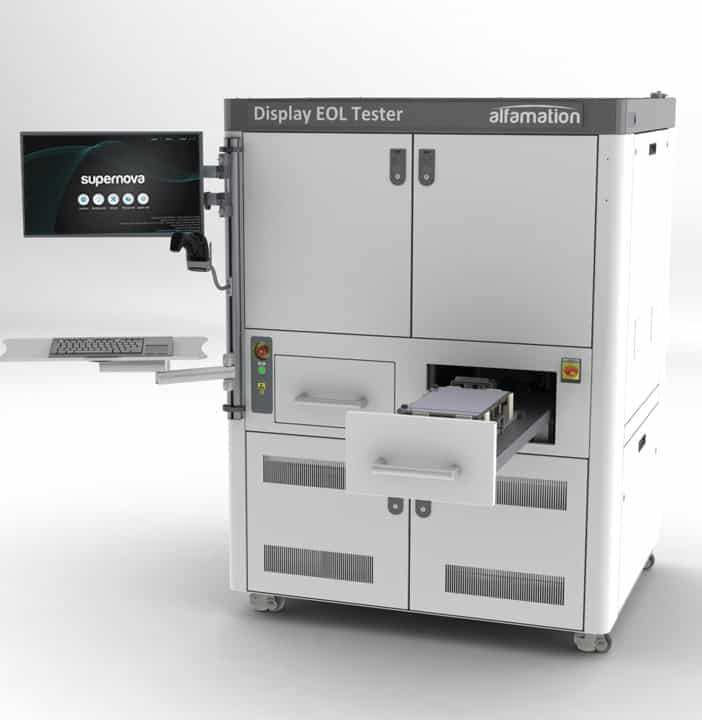

Double Test Site - Drawer

  • Two completely independent test cells
  • Double throughput

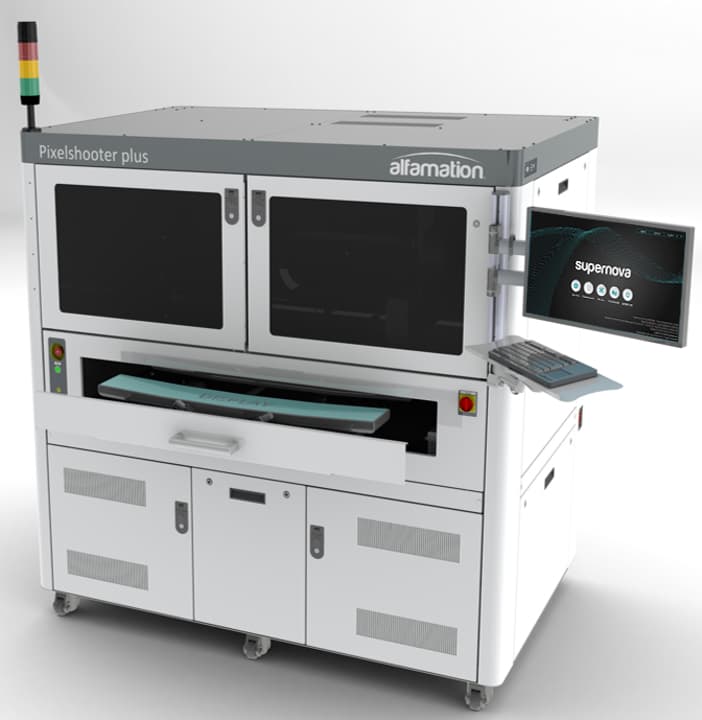

Test Site Plus Large Display Drawer

  • Concept for the test of large displays

Discover more

See Pixelshooter™ in action

WATCH THE VIDEO

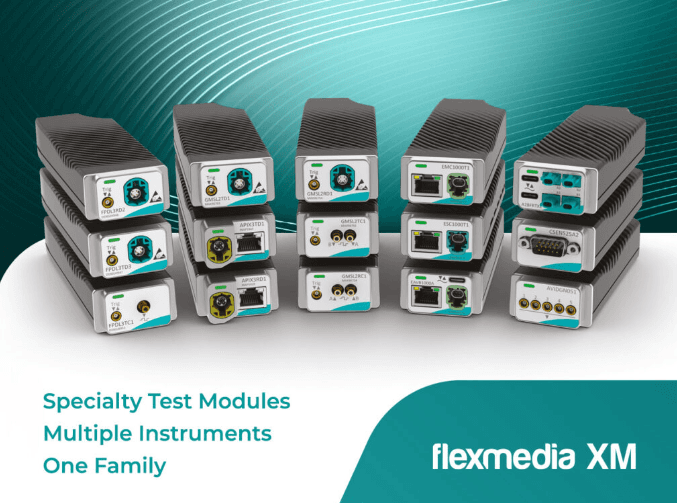

Flexmedia XM: Video generators and communication protocols (APIX®3, FPD-Link™ III, GMSL2, HDMI and LVDS)

DISCOVER MORE
